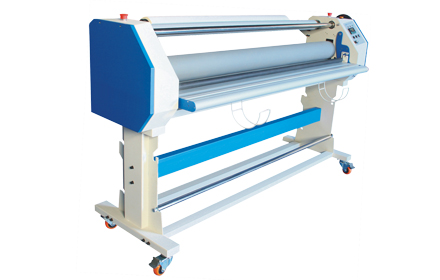

SC-1600F1 ONE-SIDE HOT LAMINATOR
FUNCTIONS AND FEATURES:
Lower cost, improve quality;
You can save $0.22 for per square meter printing;
Good color reducibility, high brightness, without bubbles and snowflakes.
High efficiency laminating and high-yield;
The entire 50-meter media will not slant;
One
man or unmanned operation can be achieved for laminating 220sq.m/h;
Thin selfadhesive is available and will be no wrinkle, and the deep color images can be laminated strongly.
Avaliable for low-temperature laminating;
Laminating at 50℃ can avoid bubbles and snowflakes;
Auto tear-off backing paper function;
One man or unmanned operation can be achieved for laminating 400sq.m/h
Wide range of application;
Suitable for the fields of indoor advertising, outdoor self-adhesive vinyl, graphic image, frameless pictures, etc.;
All the traditional cold laminating industry.
TECHNICAL PARAMETERS:
Max Laminating Width(mm) |
1580mm |
Max Laminating Thickness(mm) |
30mm |
Laminating Speed(min) |
0-8m/min |
Temp. Adjustment Range |
10℃-140℃ |
Lifting Mode for Rollers |
Manual Lifting on One Side |
Heating Method for Rollers |
Infrared Heating by Hot Air |
Warm-up(min) |
10-15min |
Power Consumption for Continuous Working |
0.8-1kw/h |
Rated Input Power(W) |
2500W |
Rated Input Voltage(V) |
110/220V |
Weight |
230Kg |
Packing Size |
2220*800*820mm |
|
