Machine Specifications and features:

Laser engravers/cutters are expertly designed to deliver quick, clean, quality results for a broad range of engraving applications and needs. Laser cutting enhances, generates added product value and provides greater turnover. Not only the production of single pieces or small series, but also serial production is cost-efficient and economic. Practically every design can be realized using a laser. This gives us total freedom when designing our own inscriptions, logos, barcodes or serial numbers. Even photos can be engraved quickly. The laser beam is the universal tool for all materials. Like PLASTIC, WOOD, GLASS, MDF, ACRYLIC, TEXTILES, LEATHER, HANDICRAFTS, CARD, PAPER, FILMS and many more

It is regularly used in industries, like advertising, craftwork making, mould making, toy manufacturing, etc. The laser cutting and engraving machine can cut and engrave on non-metal materials such as bamboo ware, wood planks, coconut shells, paper, organic glass, double color boards, acrylic, marble, jades, crystal and more. the proprietary software which supports the output of various files format: PLT, BMP, DXF, DST, AI, T100, etc.

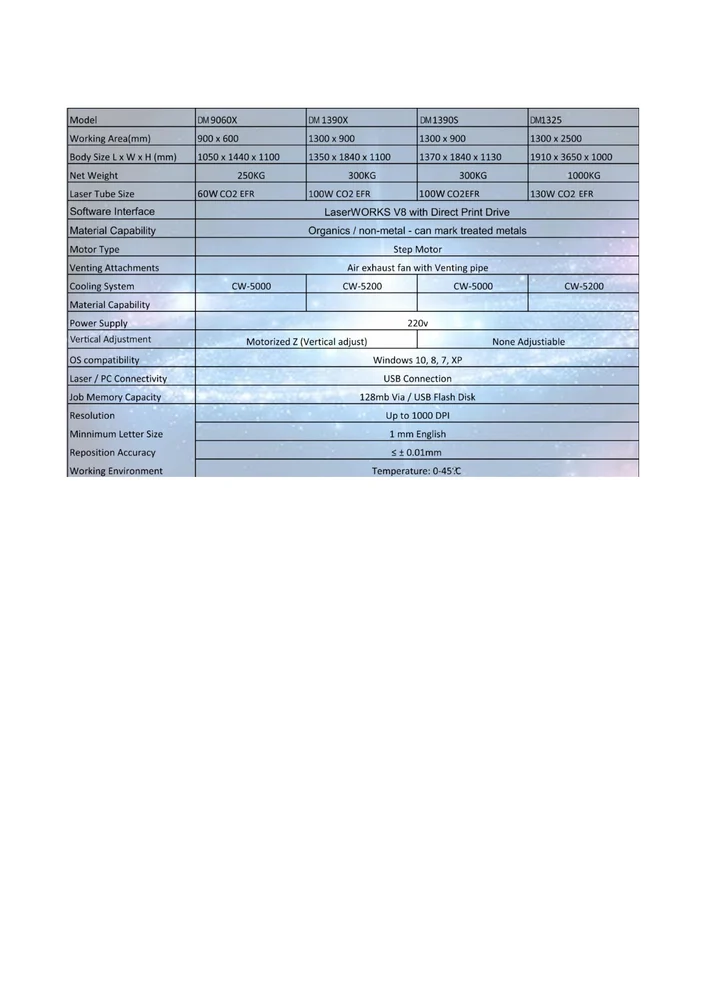

Specifications of Laser Cutting Machine

Model                          DM-1325

Work Size                   1300 x 2500 mm

Laser Tube                  130W EFR CO2 Sealed Glass

Laser Power                130W DY-20

Working Table            Strip Type

Max Speed                  0-3600MM/MIN

Resolution                   1000DPI

Image form                 PLT, DXF, BMP, JPG, GIF, PNG, TIF, AI

Drive type                   Stepper Motor Micro Stepping

Power                          220V/50Hz

Machine Size               1910x3650x1000

Cooling Way               Industrial Chiller CW5200

AIR                             AIR COMPRESSOR 180W

EXHAUST                 BLOWER 550w 2 set

G.W.                           1000Kg
