  SK-5000L
  5000L

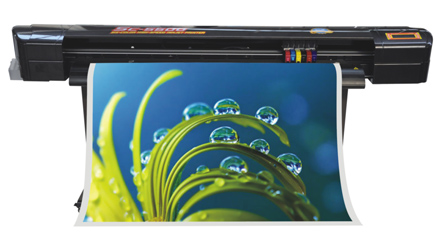

SC-5500L Six-Color Dual Guide Inkjet Printer


Functions and Features:
1.Adopting thermal inkjet microburst technology, which makes high pictures quality.
2.Being equipped with DTP dynamic thermal drying and inner heating system-dual drying system which makes images dry quickly.
3.The main body is made of alumnium alloy, more attractive and stronger; walking media axis is made of bearing steel-walking media more accurately.
4.Adopting 850 big servo motor, which has larger power, higher speed, smaller resistance and noise.
5.Provide 6 ink reservoir, satisfying customersdiversified work needs
6.Blue LCD in low-radiation, key-press with perfect design, which makes it very convinient to work at night, and easier to operate.
7.Automatic media feeding and take-up system and automatic media cutter, make it convinent in application.
8.Automatic cutting paper function.
9.Double guides rail platform design.



TECHNICAL PARAMETERS:

Print Technology On-demand thermal foam inkjet MicroBurst technology
Ink Delivery System Two-level cartridges for ink-supply, and continuous ink system with 700ml refillable bottles
Max Printing Size 152cm, 60''
Colors C, M, Y, K, LC, LM
Ink Compatibility Skycolor series dye-based and pigment-based ink
Media Compatibility Universal inkjet media
Media Handling Standard automatic media take-up & feeder system, dual drying system and auto paper-cutting
Print Resolution 600x1200dpi;600×600dpi; 300×300dpi
File Resolution Accepting 600x1200dpi; 600×600dpi; 300×300dpi files
Storage Temp: 5-35(41-95); Humidity:5%-80%RH, on-condensing
Power Supply Universal 90 -246VAC, 47- 63Hz
Power Consumption 25W idle, 1120W standard, 1200W maximum
Noise Standby:≤60dBA, Working: ≤72dBA
OperatingEnvironment Temp: 15-30(59-86); Humidity: 20%-70%RH, non-condensing
Authentication UL, FCC, CSA, TUV, CE Mark, ISO9001:2000
Dimensions Length 284cm x Width 72cm x Height 122cm
Weight 120kg

Drivers Windows95/98/NT/2000/2003/XP/Vista
Processor Power PC Buffer Standard SD64MB
Interfaces 10/100M LAN Output MainTop and Ultraprint Software
Language Options English, French, Spanish, Italian, German, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Japanese.
