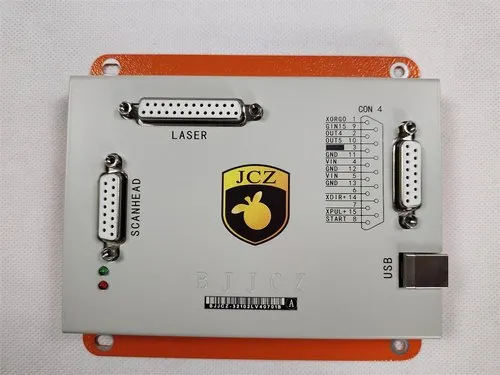

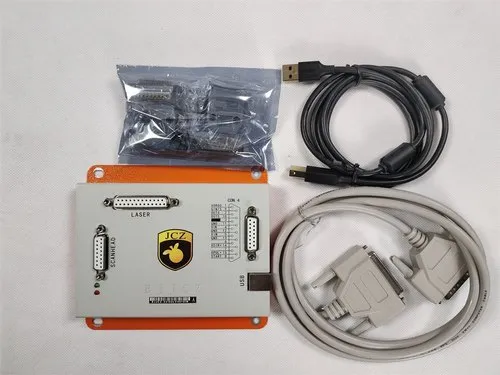

JCZ Fiber Card/ EZ Cad Card
₹13,500.00
Compare
JCZ Fiber Card/ EZ Cad Card
₹13,500.00
| Marking Speed Capacity | 7000 mm/s |
| Usage/Application | METAL AND NONMETALS |
| Laser Type | FIBER LASER |
| Marking Area | 300X300 |
| Marking Depth | 0.5 |
| Supporting Format | DXF, BMP |
| Offering Laser | ALL METALS |
| Wavelength | 1064 |
| Voltage | 220V |
Minimum order quantity: 1 Piece
EzCad Card enables real-time control of scan system and lasers over a standard USB host interface. Customers can integrate complete machinery easily over the EzCad Card due to its compactness and I/O capabilities. Fast response times and short execution cycle times make the EzCad Card perfectly suitable for high performance applications. It can load marking file via a removable MMC memory card.
| USB 2.0 micro controller on board | 128 Kbyte program and data memory 64 Kbyte SRAM for USB data buffering Real-time calculation of laser and scanner signals Online grid correction with 10 us cycle time MMC memory card interface |
| Laser Control | Laser signals for YAG FIBER and CO2 laser types opt coupler TTL Level /10 mA output current 2 x 8-bit analog channels with 2.5, 5, 10 V output range 1 x 8-bit TTL output port |
| Scanner Control | X, Y channel XY2-100 digital interface |
| Response Times | The card can response external trigger with in 12ms External trigger delay can be adjusted |
| I/O Port | 6 Input Port 6 Output Port |
| Power | +5V/1.5A or +12/0.6A |
